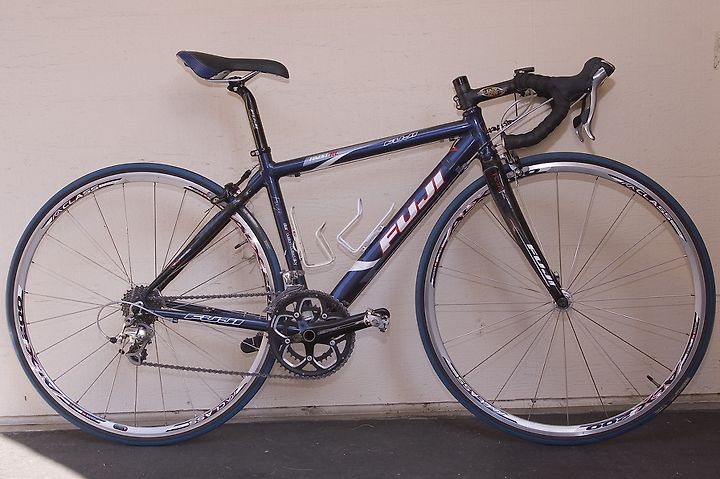

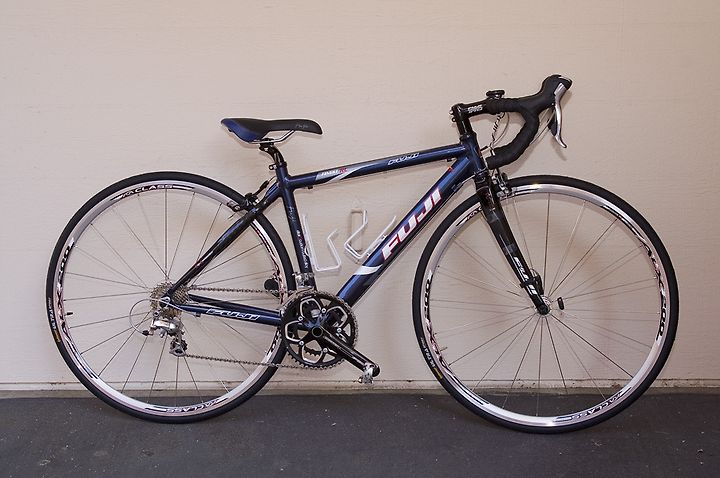

Fuji Finest RC
swlightn
2009. 9. 7. 13:16
Finest RC MSRP:$1,660
Specification
| Sizes | XS (44), S (47), M (50), L (53) |
| Color(s) | Dark Blue |
| Main frame | Fuji Compact Altair 2 lite custom butted aluminum with PowerDiamond down tube, Integrated head tube, double water bottle mounts |
| Rear triangle | Fuji carbon seat stays, Fuji Altair 2 aluminum chain stays, Fuji forged road dropout with replaceable derailleur hanger, |
| Fork | FC-770 Fuji Bonded Carbon Integrated w/ 1 1/8" Alloy Steerer |
| Crankset | FSA Gossamer Compact MegaExo, w/ Integrated spindle, 7075 CNC 34/50T Chainrings |
| Bottom bracket | FSA MegaExo Exterior Bearing System |
| Pedals | Nil |
| Front derailleur | Shimano 105, 31.8mm |
| Rear derailleur | Shimano ULTEGRA |
| Shifters | Shimano R-700 Reach Adjust STI shifter/brake, 20-speed Flight Deck compatible |
| Cassette | Shimano 105, 11-25T 10-speed |
| Chain | KMC DX-10 |
| Wheelset | A-Class ALX- 200, 700c clincher |
| Tires | Continental UltraSport, 700 x 23c |
| Tubes | CST Ultralight presta |
| Brake set | Tektro R-570 w/Cartridge pads |
| Brake levers | Shimano R-700 STI |
| Headset | Tange IS-24 1 1/8" Integrated Road w/ 10mm conex spacer |
| Handlebar | Fuji UltraLite 6061 Double Butted, 31.8mm w/Anatomical drops |
| Stem | Fuji PROLITE AL 3D forged, +/-6 degree |
| Tape/grip | Fuji custom cork wrap |
| Saddle | Fuji WoS.O. Specific |
| Seat post | Fuji PRO Forged Alloy, 350mm |
| Seat clamp | Fuji Superlite Alloy, 31.8mm Laser Etched |
| Other | 7075 alloy water bottle bolts |
| Weight, lb./kg. | 19.12/8.69 |
Geometry
| Description | XS (44) | S (47) | M (50) | L (53) | |
| A | SEAT TUBE, CENTER TO TOP | 440.0 | 470.0 | 500.0 | 530.0 |
| C-2 | EFFECTIVE TOP TUBE LENGTH | 510.0 | 525.0 | 545.0 | 555.0 |
| D | CHAIN STAY | 405.0 | 405.0 | 405.0 | 405.0 |
| E | BB DROP | 69.0 | 69.0 | 69.0 | 69.0 |
| F | FORK OFFSET | 45.0 | 45.0 | 45.0 | 45.0 |
| G | HEAD TUBE ANGLE | 70.0 | 71.0 | 71.5 | 72.0 |
| H | SEAT TUBE ANGLE | 76.0 | 74.5 | 73.5 | 73.5 |
| I | WHEEL BASE | 986.1 | 980.4 | 987.8 | 994.0 |
| J | STAND OVER HEIGHT | 711.1 | 730.2 | 753.8 | 778.0 |
| HEAD TUBE LENGTH | 110.0 | 120.0 | 140.0 | 160.0 | |
| reach | 368.0 | 370.0 | 381.9 | 385.0 | |
| stack | 522.0 | 533.0 | 547.8 | 570.0 | |
| trail | 66.2 | 63.1 | 63.1 | 56.8 | |
| STEM LENGTH | 90.0 | 90.0 | 100.0 | 110.0 | |
| STEM ANGLE | 6.0 | 6.0 | 6.0 | 6.0 | |
| HANDLEBAR WIDTH | 400.0 | 400.0 | 400.0 | 420.0 | |
| HANDLEBAR RISE | NA | NA | NA | NA | |
| CRANK LENGTH | 165.0 | 165.0 | 170.0 | 172.5 | |
| TOE CLIP SIZE | NA | NA | NA | NA | |
| SEAT POST DIAMETER |
